trim_disconnected_voxels

trim_disconnected_voxels is a function which removes blobs that are not connected to specified inlets. Blobs are any clusters of True voxels, so this can be used to analyze both solid or void phase by inverting the image as needed.

import matplotlib.pyplot as plt

import porespy as ps

ps.visualization.set_mpl_style()

im and inlets

The image contains True values indicating the phase of interest. inlets can be custom created to indicate which blobs to trim.

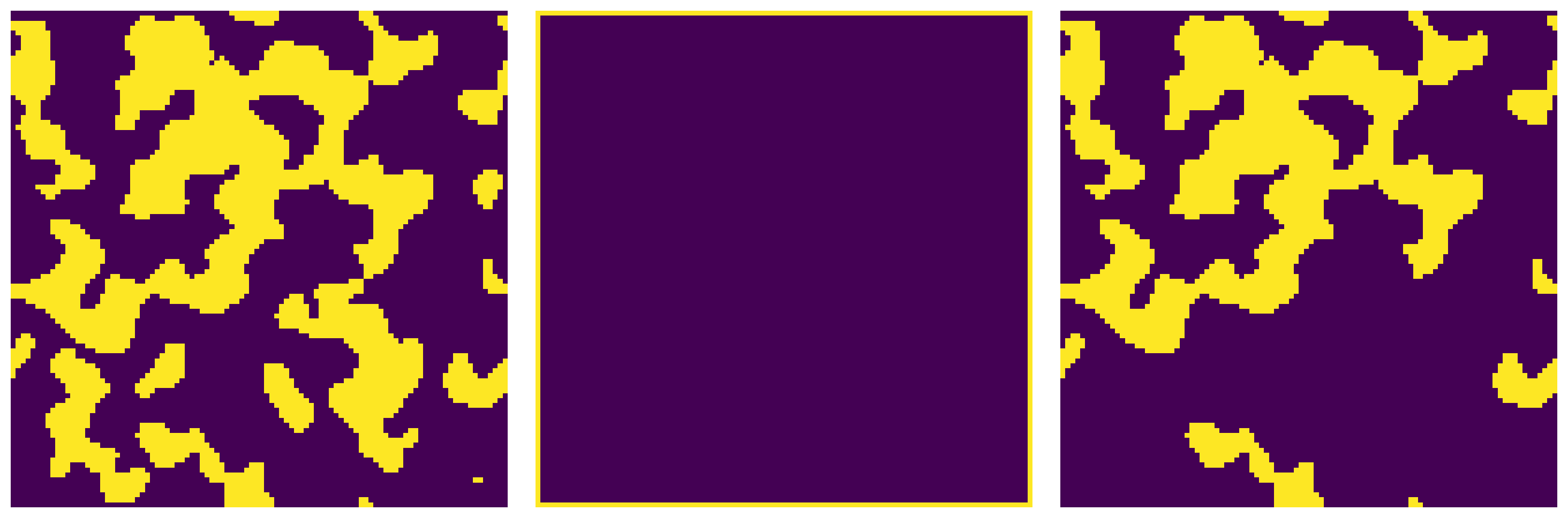

im = ps.generators.blobs(shape=[100, 100], porosity=0.38, seed=1)
inlets = ps.generators.borders(shape=im.shape, mode='faces')
im2 = ps.filters.trim_disconnected_voxels(im, inlets)

fig, ax = plt.subplots(1, 3, figsize=[15, 5])
ax[0].imshow(im, origin='lower', interpolation='none')
ax[0].axis(False)
ax[1].imshow(inlets, origin='lower', interpolation='none')
ax[1].axis(False)
ax[2].imshow(im2, origin='lower', interpolation='none')
ax[2].axis(False);

conn

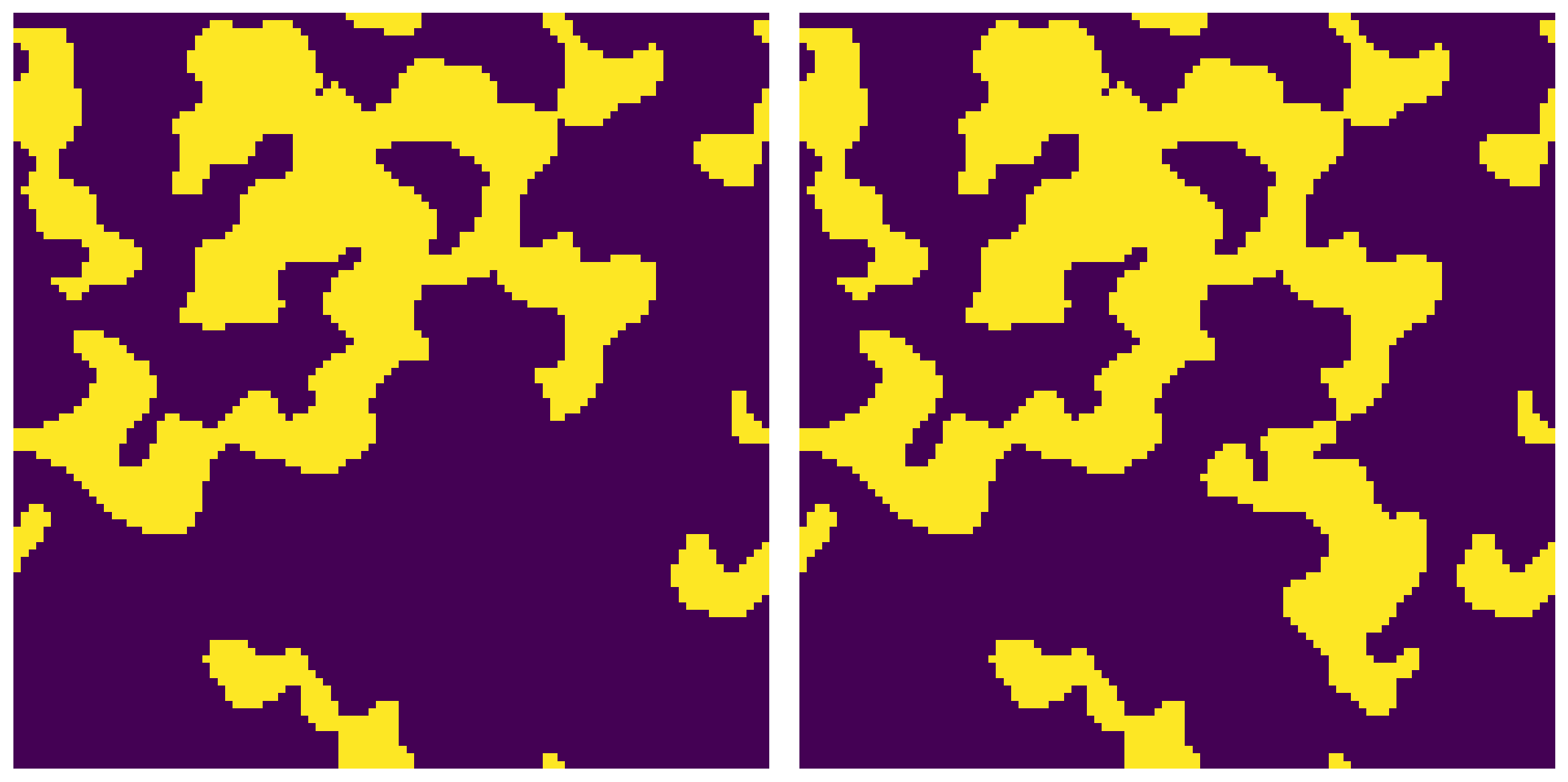

Controls how ‘connected’ a group of voxels must be. The options are 'min' which means voxels are only considered connected if they share a face, and 'max' which means voxels are connected if they share a face, edge or corner.

im1 = ps.filters.trim_disconnected_voxels(im, inlets, conn="min")
im2 = ps.filters.trim_disconnected_voxels(im, inlets, conn="max")

fig, ax = plt.subplots(1, 2, figsize=[12, 6])
ax[0].imshow(im1, origin='lower', interpolation='none')
ax[0].axis(False)
ax[1].imshow(im2, origin='lower', interpolation='none')
ax[1].axis(False);
