get_slices_grid

Import packages

import matplotlib.pyplot as plt
import numpy as np

import porespy as ps

np.random.rand(0)
ps.visualization.set_mpl_style()

Create image and variables

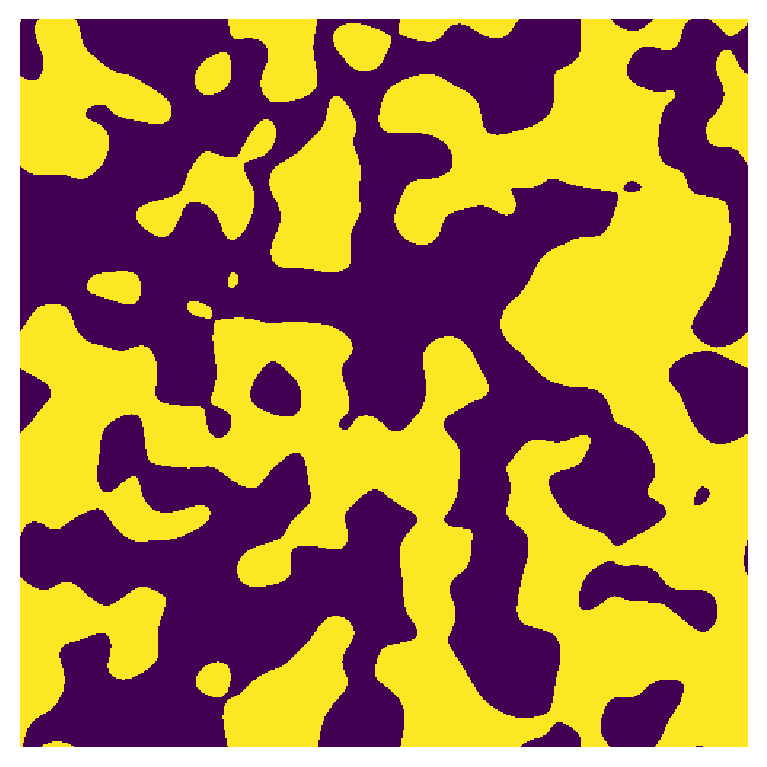

im = ps.generators.blobs([500, 500])
fig, ax = plt.subplots(1, 1, figsize=[4, 4])
ax.axis(False)
ax.imshow(im, origin="lower");

Apply tool

slice objects are returned:

slices = ps.tools.get_slices_grid(im=im, divs=2, overlap=20)
print(slices)

[(slice(0, np.int64(270), None), slice(0, np.int64(270), None)), (slice(0, np.int64(270), None), slice(np.int64(230), np.int64(500), None)), (slice(np.int64(230), np.int64(500), None), slice(0, np.int64(270), None)), (slice(np.int64(230), np.int64(500), None), slice(np.int64(230), np.int64(500), None))]

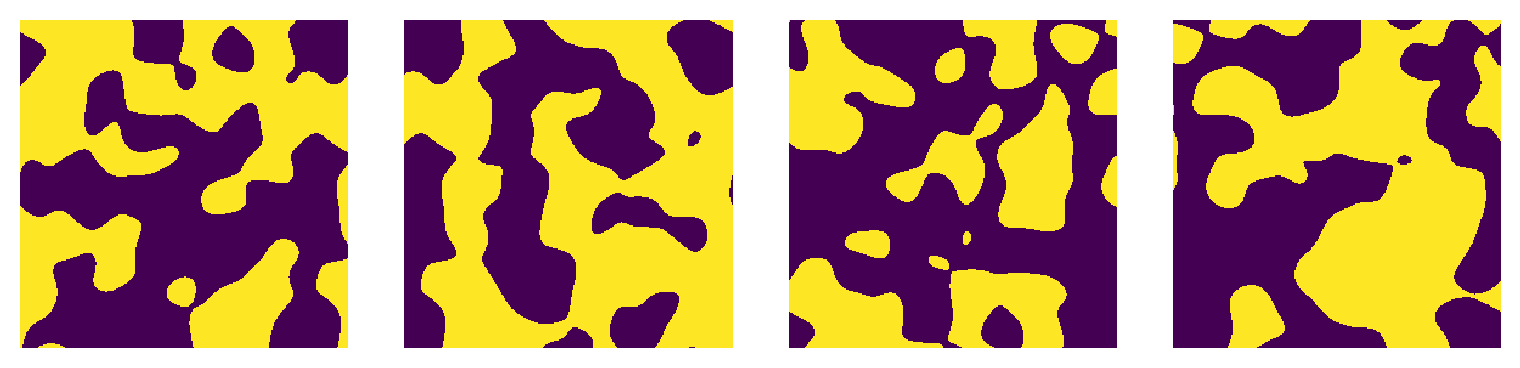

fig, ax = plt.subplots(1, 4, figsize=[8, 2])
for i, s in enumerate(slices):
    ax[i].imshow(im[s], origin="lower")
    ax[i].axis(False)
